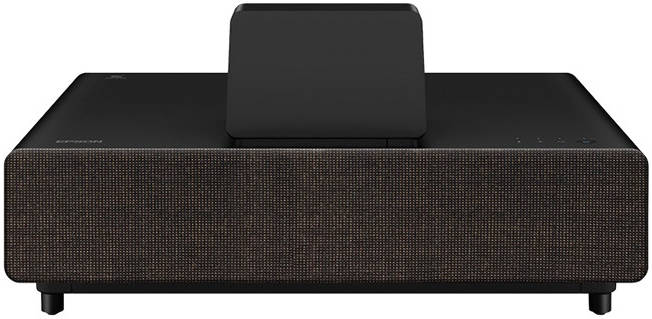

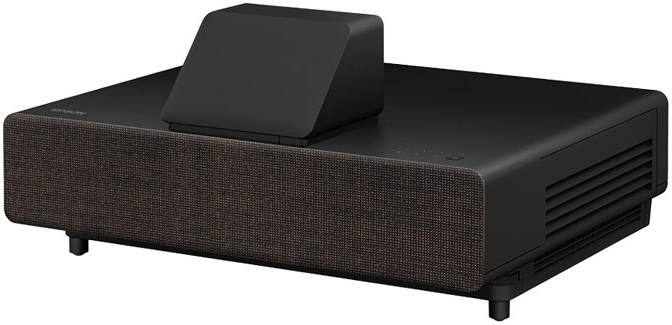

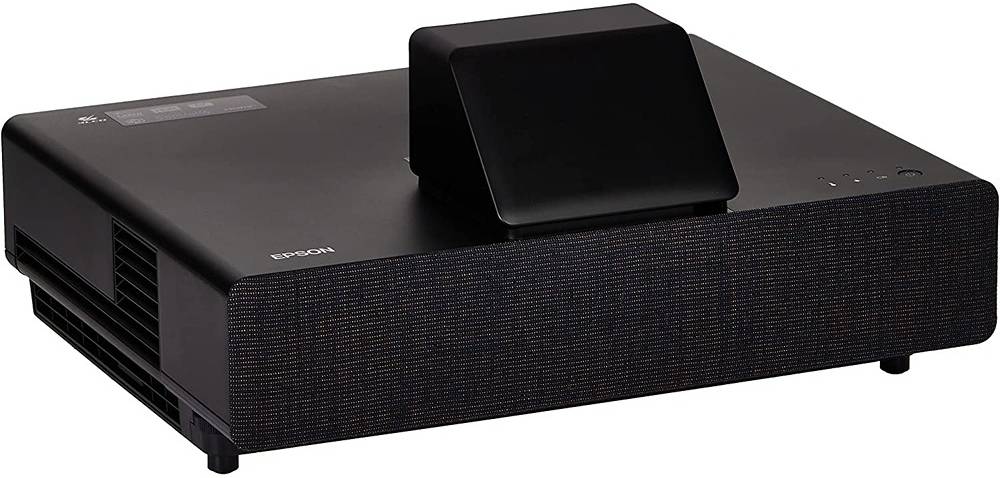

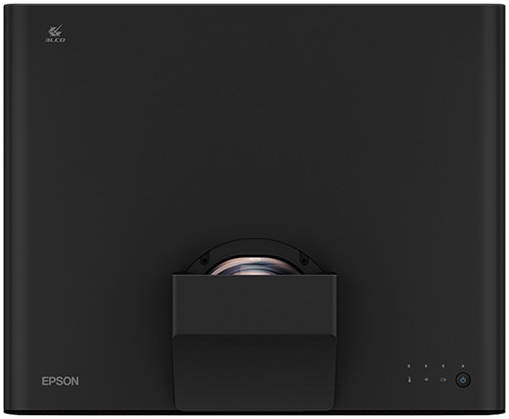

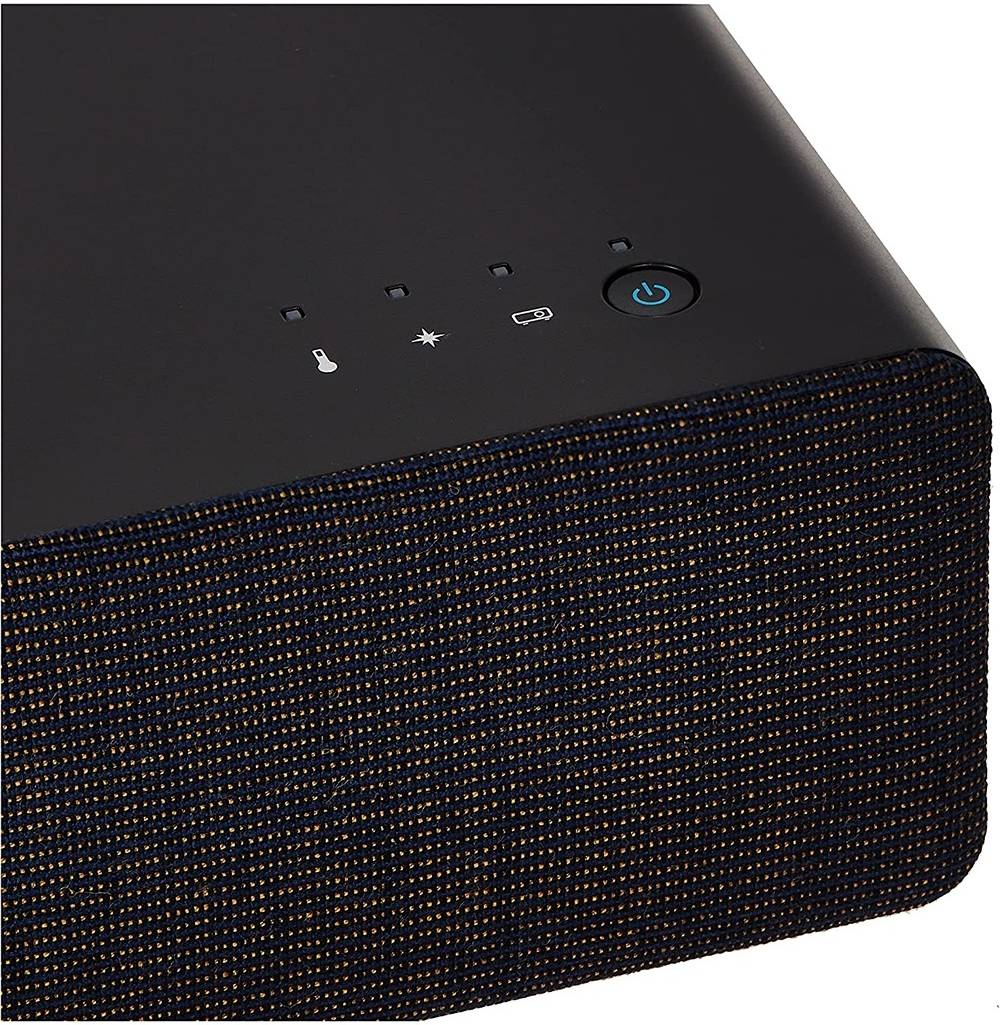

EpiqVision Ultra EH-LS500B ATV 4K PRO-UHD Laser Projection TV
With an immersive 4K HDR viewing experience, the Epson EpiqVision Ultra EH-LS500B Laser Projection TV represents a new generation of digital projection that redefines the everyday television viewing by offering a stunning 100″ picture.
Equipped with proprietary 4K PRO-UHD1 3LCD technology, the Epson EpiqVision Ultra LS500B Laser Projection TV combines an advanced, ultra-short throw laser-array projector — coupled with a high resolution, ambient-light-rejecting screen: ELPSC35 — to produce vivid colors and deep blacks for an exceptionally bright, colorful and sharp picture in virtually any viewing environment.
Key Features
Immersive Display
New Ultra-Short Throw Laser-Array Technology
4K PRO-UHD Projection Technology
Incredibly Bright Picture
10-bit HDR Color Processing
Expect more
Open up the possibilities to bigger and more exciting home entertainment while keeping your home stylish, without a black screen permanently on the wall. The EH-LS500B is distinctive in its discreet design, its visual performance and its ability to project from close to the display area. It’s easy to set up, delivers a great picture in bright rooms and offers great value with a long-life laser light source.
The big screen experience
Watch 4K content with this stylish and affordable 4K PRO-UHD projector. It can be placed very close to the projection area, while creating a 65″ to 130″ image. You can enjoy watching supersized content, without compromising on the look and feel of your home.
Stream content easily
Plug and play or stream 4K content via HDMI using your preferred streaming device. This projector has three HDMI inputs, two built-in 10w speakers and room to store a streaming device in a hidden bay at the front. Control the projector using either the included remote control or the iProjection app.
The complete picture
With a high brightness of 4,000 lumens and an incredible contrast ratio of 2,500,000:1, this projector delivers vivid, lifelike content and defined shadow detail with deeper blacks. Epson’s 3LCD technology means its projectors have up to three times brighter colours, than comparable 1-chip DLP projectors. The Detail Enhancement technology delivers sharp and smooth images, ensuring you don’t miss a moment of the action.
See beyond resolution
With Epson’s 4K PRO-UHD projectors, you get a holistic approach to image performance over and above the ability to receive, process and project 4K1 content. Great images are the result of a combination of technologies coming together, including equal colour and white brightness, 3LCD technology, contrast control, HDR10 and colour processing.
Understanding ultra-short-throw
Epson’s ultra-short-throw (UST) projectors can be placed a few centimetres away from the display, which gives much more flexibility as to where the projector is placed. This is different to most standard or long-throw projectors, which generally need to be placed several metres away.
Enjoy up to ten years of movies
Watch a movie every day on the big screen for the next ten years thanks to its incredibly long-life laser light source that minimises replacements. Epson projectors are known for their reliability, so you don’t have to worry about missing a minute of your favourite film, game or programme.
Brighter, vivid projection
White brightness alone cannot bring the true colours you see everyday to life. The 3LCD technology found in Epson’s projectors delivers an equally high white and Colour Light Output (CLO), so that you can experience vivid and lifelike images.
Flicker-free images
1-chip and LED projectors can be subject to the ‘rainbow effect’, which describes how some people can see a disruptive flicker in fast-moving images. Ensuring smooth images, Epson’s projectors use 3LCD technology, which means that the ‘rainbow effect’ can never occur.
Specifications
Projection Technology
RGB liquid crystal shutter projection system
Panel Size
0.61-inch (C2fine)
Light Source
Laser Diode
Life
20,000 hours
Native Resolution
4K Pro UHD
Brightness
White Light Output (Normal / Eco): 4000 lm / 1200 lm
Colour Light Output: 4000 lm

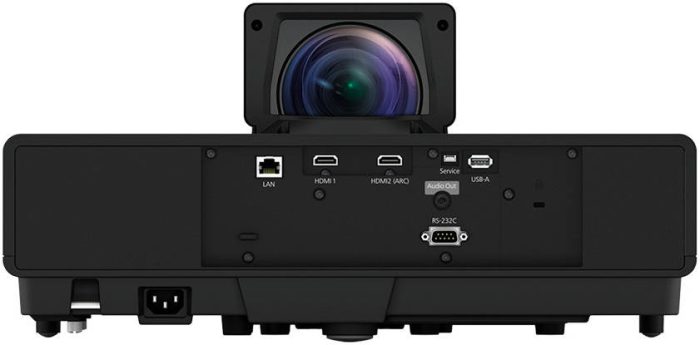

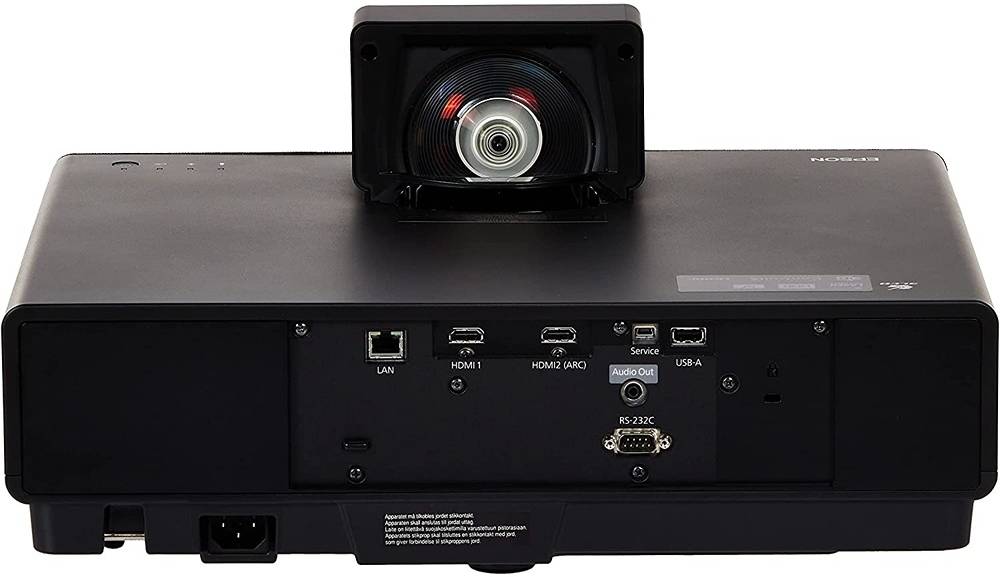

Connectivity
USB Interface:
– USB Type A: 1 (for USB Memory, Firmware Update, Copy OSD Settings)
– USB Mini Type B: 1 (for Firmware Update)
Network:
– Wireless: Optional (ELPAP10)
– Wired Lan: RJ45 x 1
Analog Input:
– D-Sub 15 pin: NA
– Composite: NA
Digital Input:
– HDMI: 3 (HDCP2.2)
Audio Output
Stereo Mini Jack: 1
Control I/O
RS-232C: D-sub 9 pin x 1
Contrast Ratio
Over 2,500,000:1
Screen Size (Projected Distance)
Standard Size: 80″ [49 cm]
Zoom – Wide: 65″ to 130″ [39.8 to 81.7 cm] @ 16:9
Geometric Correction
Vertical/Horizontal Keystone: ±3°/±3°
Start-Up Period
Less than 7 seconds (Epson Logo)
Quick Startup: Less than 9 seconds (Display)
Warm-up period: 30 seconds
Operating Temperature
5 °C to 35 °C (0m/0ft – 2286m / 7500ft)
5 °C to 30 °C (over 2286m / 7500ft)
20% – 80% humidity, No condensation
Operating Altitude
0 m to 3048 m (over 1500m / 4,921 ft: High altitude mode)
Dimension Excluding Feet (W x H x D)
458 x 209.5 x 375 mm
Fan Noise (Normal/Eco)
36dB / 23dB
Power
Power Supply Voltage: 100 – 240 V AC +/- 10%, 50/60 Hz
Internal Speaker(s)
Sound Output: 10W x 10W Stereo
Weight
Approx. 20.5 lbs. / 9.3 kg
Air Filter
Maintenance Cycle: 20,000 H
Wireless Specifications (Smart Media Player)
Wireless LAN Generation: Wi-Fi 5
Supported Speed For Each Mode: IEEE 802.11a/b/g/n/ac
Bluetooth: Version 5.0, Supported Codec: SBC
Supported OS: Android OS, Supported VOD Platform: Android TV
Video Output Resolution: Up to 3,840 x 2,160 60fps 4:4:4
Wireless Specifications (Built-in Bluetooth)
Version: Version 3.0
Communication Distance: Approx. 10m
Frequency Used: 2.4GHz, Supported Codec: SBC, Qualcomm aptX Audio
Streaming Media Player
Supported Operating System: Android 9.0, Nunai OS
Video Processing: Dolby Vision, Dynamic HDR, HDR10, HLG, Technicolor HDR processing
Audio: MP3, AAC, WMA, RM, FLAC, Ogg, Dolby Digital, DTS
Projectors Facets
Resolution: 4K PRO-UHD
Contrast Ratio: Over 2,500,000:1
Brightness Range Lumens: 2000
4K PRO-UHD: Yes
Features: Screen mirroring, Android TV, Bluetooth Speaker, Auto Vertical Keystone
Laser / Lamp: Laser
Screen Size: 48″ – 130″
Projector Primary Usage: Living Room
Projector Series: EpiqVision Ultra
