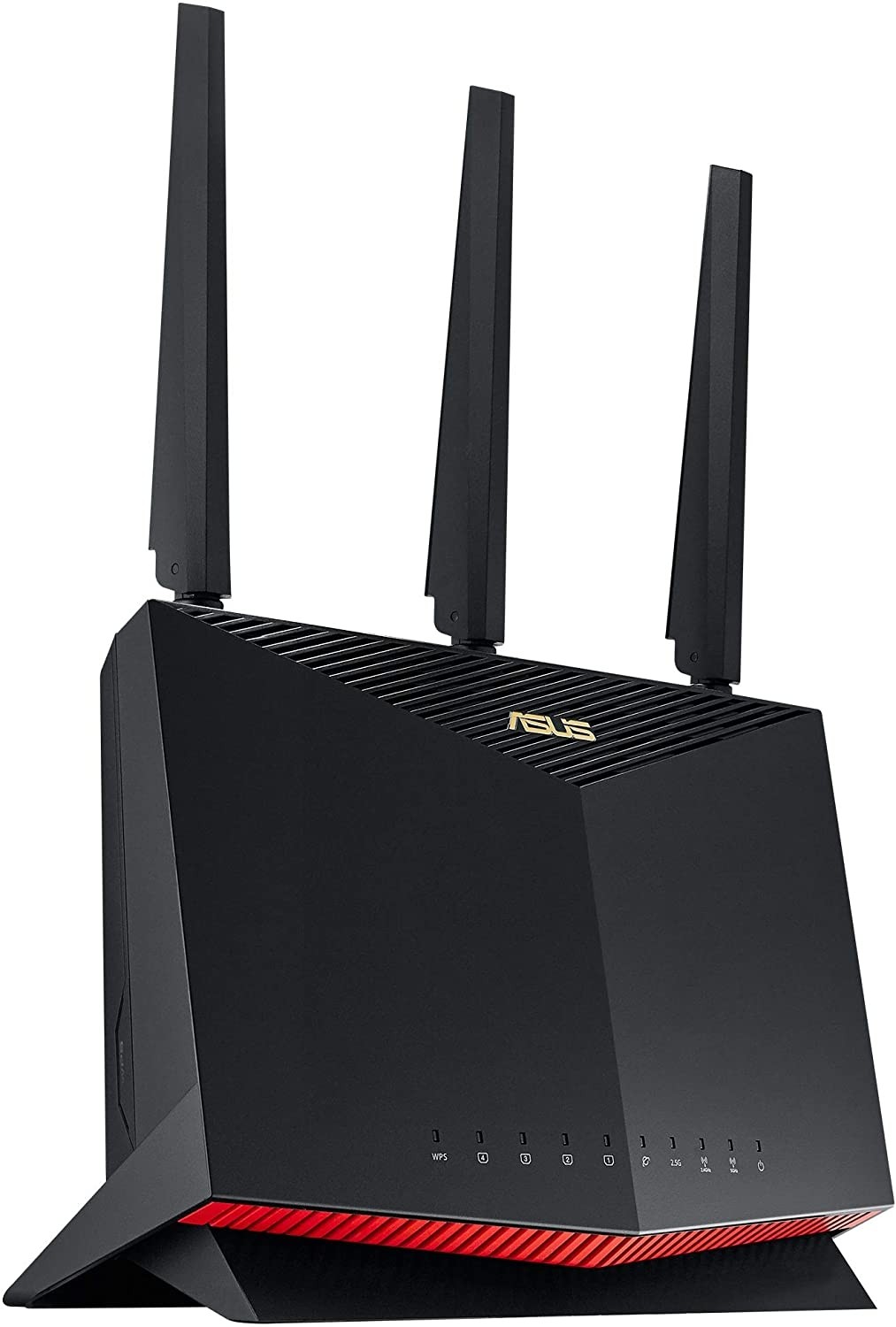

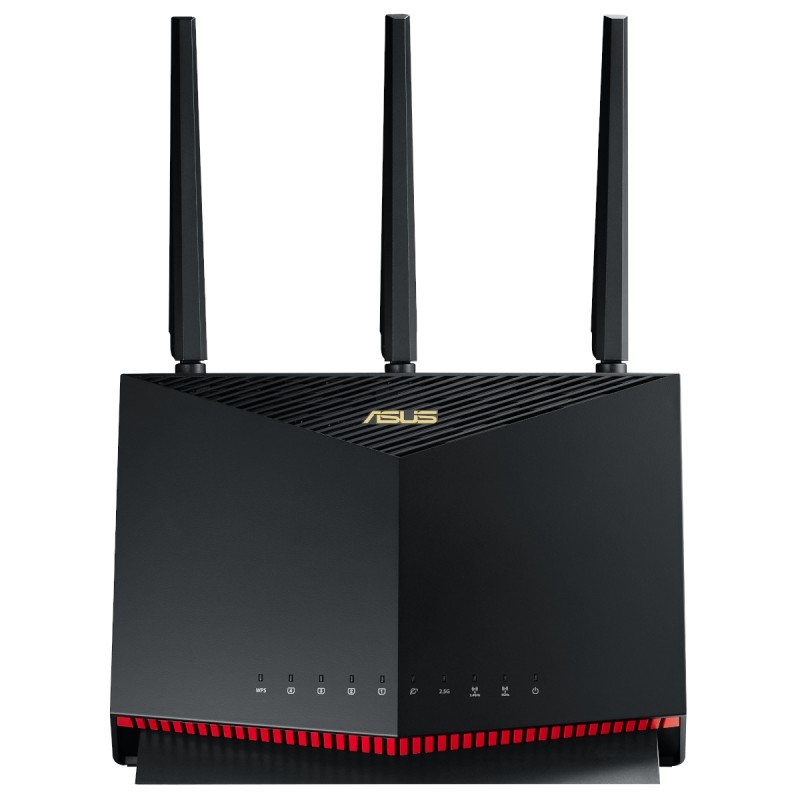

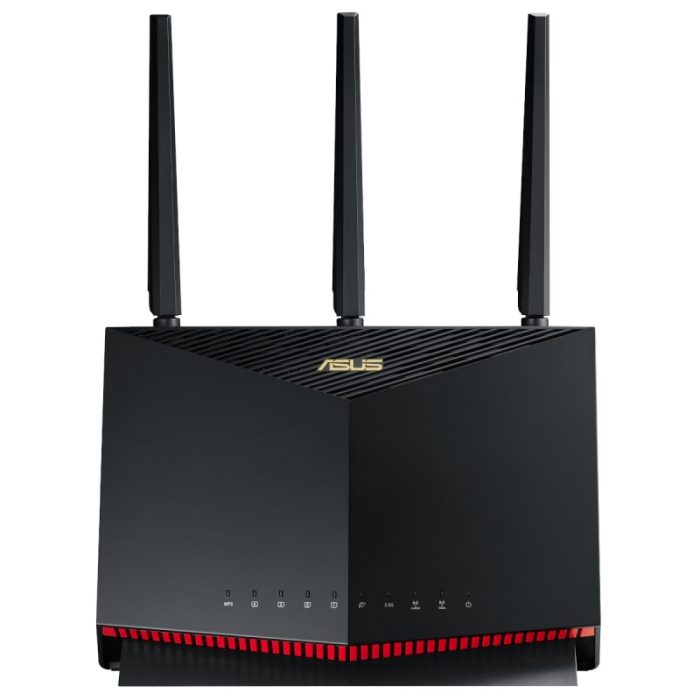

Asus RT-AX86U AX5700 Dual Band WiFi 6 Gaming Router, WiFi 6 802.11ax, Mobile Game Mode, Lifetime Free Internet Security, Mesh WiFi support, 2.5G Port, Gaming Port, Adaptive QoS, Port Forwarding
New-generation WiFi 6 – Enjoy ultrafast speeds up to 5700 Mbps with the latest WiFi 6 (802.11ax) and 160MHz channels
Mobile Game Mode – Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app
True 2 Gbps wired and wireless speeds – Aggregated 2 Gbps WAN connections, wired 2.5 Gbps port and WiFi 6
ASUS AiMesh support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers
Commercial-grade home network security – Lifetime free ASUS AiProtection Pro, powered by Trend Micro™, with WPA3 and advanced Parental Controls to protect your home
Your Winning Choice
for Mobile Gaming!
Enjoy the fastest, smoothest WiFi gaming connections ever with the ASUS RT-AX86U dual-band WiFi 6 router. It delivers ultrafast WiFi speeds up to 5700 Mbps*, and is packed with advanced technology, including Mobile Game Mode for a lag-free, low-latency mobile gaming experience.
Ultrapowerful WiFi 6
Lower latency Faster speeds
Energy efficient Longer range
RT-AX86U brings you all the benefits of WiFi 6 (802.11ax), and works perfectly with all your existing WiFi devices!
Lightning-Fast
2 Gbps Internet
RT-AX86U is designed to break down all the barriers that can slow down your gaming. It supports up to a 2 Gbps internet connection, so you can unlock the full potential of high-speed networking for both wired and WiFi connections.
Specifications
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6
Product Segment
AX5700 ultimate AX performance
Coverage
Very large homes
Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 450 Mbps
802.11n (1024 QAM) : up to 750 Mbps
802.11ac (1024 QAM) : up to 4333 Mbps
802.11ax (2.4GHz) : up to 861 Mbps
802.11ax (5GHz) : up to 4804 Mbps
Antenna
External antenna x 3
Internal PCB antenna x 1
Transmit/Receive
2.4 GHz 3 x 3
5 GHz 4 x 4
Processor
1.8 GHz quad-core processor
Memory
256 MB Flash
1 GB RAM
Wi-Fi Technology
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz / 5 GHz
Encryption
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
Firewall & Access Control
Firewall: SPI intrusion detection, DoS protection
Access control：Parental control, Network service filter, URL filter, Port filter
Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
IPSec server
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Utilities
Router setup wizard; Firmware restoration; Device discovary
Ports
RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4, RJ45 for 2.5G BaseT for WAN/LAN x 1
USB 3.2 Gen 1 x 2
Features
Router app
Link Aggregation
– 802.3ad
MU-MIMO
Traffic Analyzer
Adaptive QoS
AiProtection Pro
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : PPTP Server, OpenVPN Server, IPSec server
VPN client : PPTP client, L2TP client, OpenVPN client
NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
– Image :
– Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
– Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
Download Master
– Support bt, nzb, http, ed2k
– Support encryption, DHT, PEX and magnet link
– Upload and download bandwidth control
– Download scheduling
AiDisk file server
– Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist
OFDMA
Beamforming
NVIDIA Geforce Now Cloud Gaming Optimization
WAN Aggregation
Button
WPS Button, Reset Button, Power Switch, LED on/off Button
LED Indicator
Power x 1
Wi-Fi x 2
2.5G Port x 1
WAN x 1
LAN x 4
WPS x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current
DC Output : 19.5 V with max. 2.31 A current
OS Support
Windows® 10
Windows® 8
Windows® 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Dimensions
242 x 100 x 325 mm (WxDxH) with antenna
242 x 100 x 164 mm (WxDxH) without antenna
Weight
814.5 g
Package Content
RT-AX86U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Operation mode
Wireless router mode
Access point mode
Media bridge mode
